Product Details
原产地: Guangdong China
品牌名称: LINK-PP
认证: ISO9001,UL,Reach,SGS,RoHS
产品型号: LPJD0012DNL
Payment & Shipping Terms
最小订货量: 1200
价格: 据数量不等
包装: 50个/盘,1200个/箱
交货周期: 库存 or 2 weeks
付款条款: T/T
供货能力: 3000K-PCS/月
规格: |
LPJD0012DNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
无 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
规格: |
LPJD0012DNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
无 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |

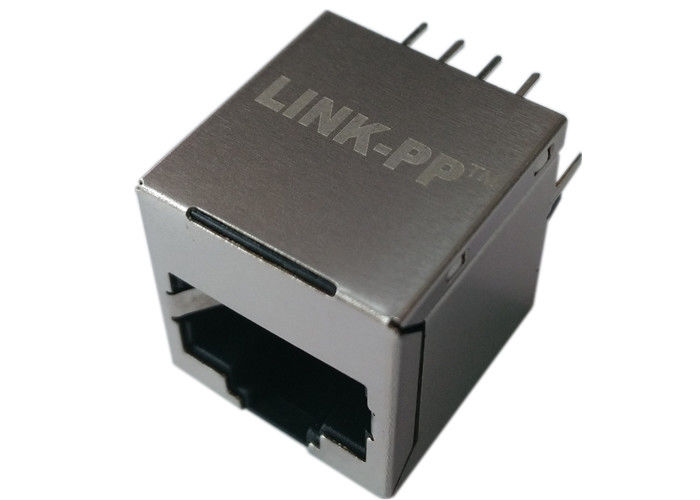

单口-快速以太网-Rj45 连接器.
| Turn Ratio(±2%): | TX=1CT:1CT, RX=1CT:1CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. / -40℃ TO 85℃. |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| PE65432 | LP85432 | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| PE65434 | LP85434 | LINK-PP / Pulse | |
| PE65493 | LPB85493 | LINK-PP / Pulse | |
| PE65494 | LPB85494 | LINK-PP / Pulse | |
| PE65495 | LPB85495 | LINK-PP / Pulse | |
| PE65498 | LPB85498 | LINK-PP / Pulse | |
| PE65499 | LPB85499 | LINK-PP / Pulse | |
| PE65506 | LP85506 | LINK-PP / Pulse | |
| PE65541 | LP85541 | LINK-PP / Pulse | |
| PE65508 | LP85508 | LINK-PP / Pulse | 询价 |
| PE65510 | LP85510 | LINK-PP / Pulse | |
| PE65542 | LP85542 | LINK-PP / Pulse | |
| PE65554 | LP85542 | LINK-PP / Pulse | |
| PE65558 | LP85558 | LINK-PP / Pulse | |
| PE68026 | LP88026 | LINK-PP / Pulse | |
| PE68027 | LP88027 | LINK-PP / Pulse | 库存 |
| PE68030 | LP88030 | LINK-PP / Pulse | |
| PE68031 | LP88031 | LINK-PP / Pulse | |
| PE68032 | LP88032 | LINK-PP / Pulse | |
| PE68033 | LP88033 | LINK-PP / Pulse | |
| PE68035 | LP88035 | LINK-PP / Pulse | |
| PE68041 | LP88041 | LINK-PP / Pulse | |
| PE68048 | LP88048 | LINK-PP / Pulse | |
