Product Details
原产地: Guangdong China
品牌名称: LINK-PP
认证: ISO9001,UL,Reach,SGS,RoHS
产品型号: LPJD0011BENL
Payment & Shipping Terms
最小订货量: 1200
价格: 据数量不等
包装: 50个/盘,1200个/箱
交货周期: 库存 or 2 weeks
付款条款: T/T
供货能力: 3000K-PCS/月
规格: |
LPJD0011BENL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
规格: |
LPJD0011BENL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |

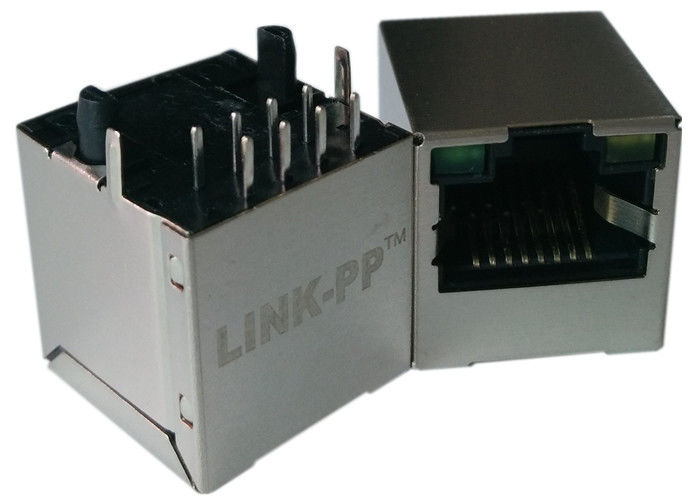

单口-快速以太网-Rj45 连接器.
| Turn Ratio(±2%): | TX=1CT:1CT, RX=1CT:1CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. / -40℃ TO 85℃. |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| ST6158T | LP6158T | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| ST6180T | LP6180T | LINK-PP / Pulse | |
| ST7010 | LP7010 | LINK-PP / Pulse | |
| ST7011 | LP7011 | LINK-PP / Pulse | |
| ST7033 | LP7033 | LINK-PP / Pulse | |
| T1063 | LPB1063 | LINK-PP / Pulse | |
| T1064 | LPB1064 | LINK-PP / Pulse | |
| T1065 | LPB1065 | LINK-PP / Pulse | |
| T1066 | LPB1066 | LINK-PP / Pulse | |
| T1067 | LPB1067 | LINK-PP / Pulse | 询价 |
| T1068 | LPB1068 | LINK-PP / Pulse | |
| T1069 | LPB1069 | LINK-PP / Pulse | |
| T1070 | LPB1070 | LINK-PP / Pulse | |
| T1071 | LPB1071 | LINK-PP / Pulse | |
| H1092 | LP1092 | LINK-PP / Pulse | |
| H1089 | LP1089 | LINK-PP / Pulse | 库存 |
| H1094 | LP1094 | LINK-PP / Pulse | |
| H1100 | LP1100 | LINK-PP / Pulse | |
| PE64108 | LP84108 | LINK-PP / Pulse | |
| PE64109 | LP84109 | LINK-PP / Pulse | |
| PE64502 | LP84502 | LINK-PP / Pulse | |
| PE64503 | LP84503 | LINK-PP / Pulse | |
| PE64680 | LPB84680 | LINK-PP / Pulse | |
