Product Details
原产地: 广东-中国
品牌名称: LINK-PP
认证: ISO,SGS,Reach,UL,RoHS

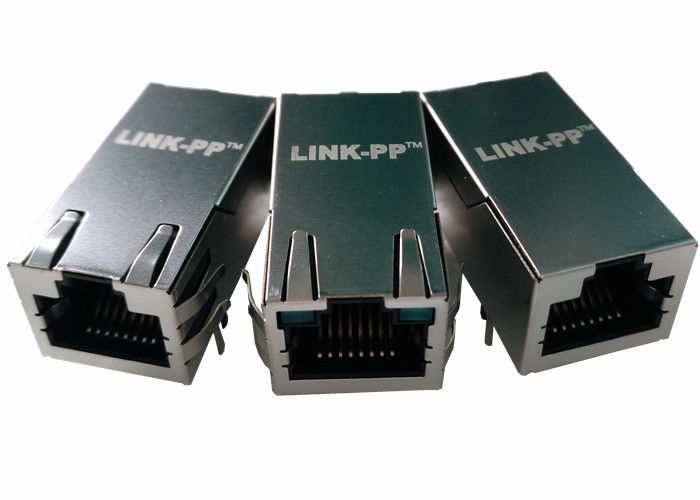

产品型号: LPJK9036AHNL
Payment & Shipping Terms
最小订货量: 600
价格: 据量
包装: 60pcs/卷,960pcs/箱
交货周期: 4-5 周
付款条款: T/T
规格: |
LPJK9036AHNL |
封装: |
贴片 |
速率: |
10/100/1000/10000Mbps 自适应 |
LED指示灯: |
Green-YELLOW |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
规格: |
LPJK9036AHNL |
封装: |
贴片 |
速率: |
10/100/1000/10000Mbps 自适应 |
LED指示灯: |
Green-YELLOW |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
| Turn Ratio(±2%) | TX=1CT:1CT RX=1CT:CT | |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias | |
| Insertion Loss | -1.0dB MAX @ 1-65MHz | |
| Return Loss | -20dB MIN @ 1-10MHz | |
| -16dB MIN @ 10-30MHz | ||
| -12dB MIN @ 30-60MHz | ||
| -10dB MIN @ 60-100MHz | ||
| Cross talk | -40dB MIN @ 1-30MHz | |
| -35dB MIN @ 30-60MHz | ||
| -30dB MIN @ 60-100MHz | ||
| Common Mode Rejection | -30dB MIN @ 1-50MHz | |
| -20dB MIN @ 50-150MHz | ||
| Hipot Test | 1500Vrms MIN |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| PE65944 | LPB85944 | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| PE65950 | LPB85950 | LINK-PP / Pulse | |
| PE65967 | LPB85967 | LINK-PP / Pulse | |
| PE65968 | LPB85968 | LINK-PP / Pulse | |
| PE65994 | LPB85994 | LINK-PP / Pulse | |
| PE67540 | LPB87540 | LINK-PP / Pulse | |
| PE67583 | LP87583 | LINK-PP / Pulse | |
| PE67588 | LP87588 | LINK-PP / Pulse | |
| PE68017S | LP88017S | LINK-PP / Pulse | |
| PE68007 | LP88007 | LINK-PP / Pulse | 询价 |
| PE68008 | LP88008 | LINK-PP / Pulse | |
| PE68011 | LP88011 | LINK-PP / Pulse | |
| PE68023 | LP88023 | LINK-PP / Pulse | |
| PE68025 | LP88025 | LINK-PP / Pulse | |
| ST4162 | LP4162 | LINK-PP / Pulse | |
| ST4190 | LP4190 | LINK-PP / Pulse | 库存 |
| ST4192(T) | LP4192T | LINK-PP / Pulse | |
| ST4202T | LP4202T | LINK-PP / Pulse | |
| ST4214 | LP4214 | LINK-PP / Pulse | |
| ST6114 | LP6114 | LINK-PP / Pulse | |
| ST6118 | LP6118 | LINK-PP / Pulse | |
| ST6149 | LP6149 | LINK-PP / Pulse | |
| ST6155T | LP6155T | LINK-PP / Pulse | |
