Product Details
原产地: 广东-中国
品牌名称: LINK-PP
认证: ISO,SGS,Reach,UL,RoHS

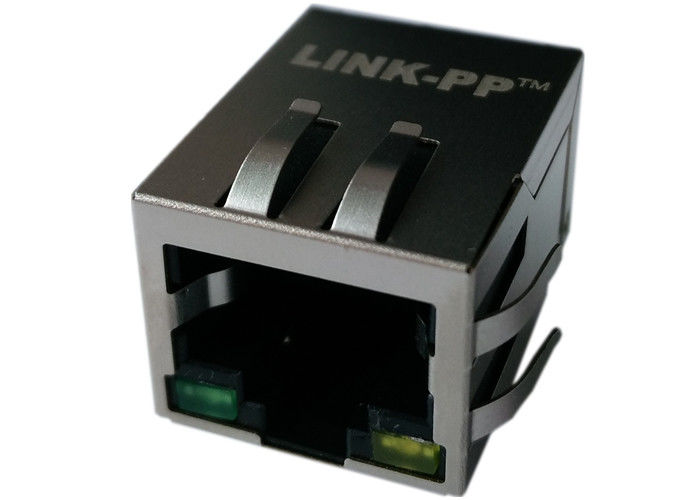

产品型号: LPJG4801GENL
Payment & Shipping Terms
最小订货量: 1200
价格: 工厂价
包装: 50pcs/盘,1200pcs/箱
交货周期: 现货
付款条款: T/T
规格: |
LPJG4801GENL |
封装: |
贴片 |
速率: |
10/100/1000Mbps 自适应 |
LED指示灯: |
黄绿-平行灯脚 |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
规格: |
LPJG4801GENL |
封装: |
贴片 |
速率: |
10/100/1000Mbps 自适应 |
LED指示灯: |
黄绿-平行灯脚 |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
| Turn Ratio(±2%) | TX=1CT:1CT RX=1CT:CT | |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias | |
| Insertion Loss | -1.0dB MAX @ 1-65MHz | |
| Return Loss | -20dB MIN @ 1-10MHz | |
| -16dB MIN @ 10-30MHz | ||
| -12dB MIN @ 30-60MHz | ||
| -10dB MIN @ 60-100MHz | ||
| Cross talk | -40dB MIN @ 1-30MHz | |
| -35dB MIN @ 30-60MHz | ||
| -30dB MIN @ 60-100MHz | ||
| Common Mode Rejection | -30dB MIN @ 1-50MHz | |
| -20dB MIN @ 50-150MHz | ||
| Hipot Test | 1500Vrms MIN |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| H1028 | LP1028 | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| H1036 | LP1036 | LINK-PP / Pulse | |
| H1038 | LP1038 | LINK-PP / Pulse | |
| H1040 | LP1040 | LINK-PP / Pulse | |
| H1041 | LP4041 | LINK-PP / Pulse | |
| H1042 | LP1042 | LINK-PP / Pulse | |
| H1043 | LP1043 | LINK-PP / Pulse | |
| H1044 | LP1044 | LINK-PP / Pulse | |
| H1045 | LP1045 | LINK-PP / Pulse | |
| H1053 | LP1053 | LINK-PP / Pulse | 询价 |
| H1060 | LP1060 | LINK-PP / Pulse | |
| H1062 | LP1062 | LINK-PP / Pulse | |
| H1063 | LP1063 | LINK-PP / Pulse | |
| H1069 | LP1069 | LINK-PP / Pulse | |
| H1071 | LP1071 | LINK-PP / Pulse | |
| H1074 | LP1074 | LINK-PP / Pulse | 库存 |
| H1076 | LP1076 | LINK-PP / Pulse | |
| H1078 | LP1078 | LINK-PP / Pulse | |
| H1081 | LP1081 | LINK-PP / Pulse | |
| B6006L | LPA6006L | LINK-PP / Pulse | |
| B6006 | LPA6006 | LINK-PP / Pulse | |
| H1101 | LP1101 | LINK-PP / Pulse | |
| H1102 | LP1102 | LINK-PP / Pulse | |
