Product Details
原产地: 广东-中国
品牌名称: LINK-PP
认证: ISO,SGS,Reach,UL,RoHS

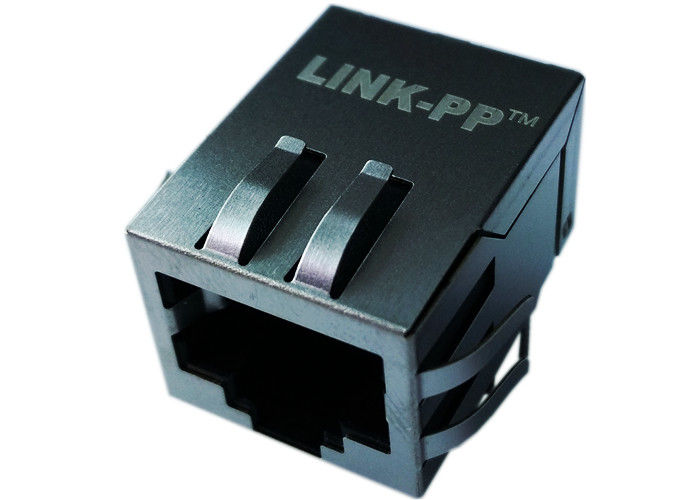

产品型号: LPJG0801CNL
Payment & Shipping Terms
最小订货量: 1200
价格: 工厂价
包装: 50pcs/盘,1200pcs/箱
交货周期: 现货
付款条款: T/T
规格: |
LPJG0801CNL |
封装: |
贴片 |
速率: |
10/100/1000Mbps 自适应 |
LED指示灯: |
无 |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
规格: |
LPJG0801CNL |
封装: |
贴片 |
速率: |
10/100/1000Mbps 自适应 |
LED指示灯: |
无 |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
| Turn Ratio(±2%): | TX=1CT:1CT RX=1CT:CT | |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias | |
| Insertion Loss | -1.0dB MAX @ 1-65MHz | |
| Return Loss | -20dB MIN @ 1-10MHz | |
| -16dB MIN @ 10-30MHz | ||
| -12dB MIN @ 30-60MHz | ||
| -10dB MIN @ 60-100MHz | ||
| Cross talk | -40dB MIN @ 1-30MHz | |
| -35dB MIN @ 30-60MHz | ||
| -30dB MIN @ 60-100MHz | ||
| Common Mode Rejection | -30dB MIN @ 1-50MHz | |
| -20dB MIN @ 50-150MHz | ||
| Hipot Test | 1500Vrms MIN |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| LPJ0215DNL | LPJ0198AANL | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| LPJ0215GDNL | LPJ0199AANL | LINK-PP / Pulse | |
| LPJ0215GENL | LPJ0211BBNL | LINK-PP / Pulse | |
| LPJ0219GENL | LPJ0212GENL | LINK-PP / Pulse | |
| LPJ0221AKNL | LPJ0215AANL | LINK-PP / Pulse | |
| JTG-0006NL | LPJ0215CNL | LINK-PP / Pulse | |
| JTG-0010NL | JKM-0013NL | LINK-PP / Pulse | |
| JTH-0001NL | JKM-1121HL | LINK-PP / Pulse | |
| JTH-0020NL | JP006821U | LINK-PP / Pulse | |
| JV00612NL | JP011821U | LINK-PP / Pulse | 询价 |
| JG0-0031 | JP026821U | LINK-PP / Pulse | |
| JG0-0032 | JT3-1101HL | LINK-PP / Pulse | |
| JXKM-0004NL | JK0-0036NL | LINK-PP / Pulse | |
| JXKM-0013NL | LPJ0188GDNL | LINK-PP / Pulse | |
| JXR0-0001NLT | LPJ0188CNL | LINK-PP / Pulse | |
| JXR0-0005NLT | LPJ0190GENL | LINK-PP / Pulse | 库存 |
| JXR0-0011NLT | LPJ0190HENL | LINK-PP / Pulse | |
| JXR0-0015NLT | LPJ0194CNL | LINK-PP / Pulse | |
| JXR1-0001NLT | LPJ0195CNL | LINK-PP / Pulse | |
| JXR1-0005NLT | LPJ0195-7CNL | LINK-PP / Pulse | |
| JXR1-0011NLT | LPJ0196AGNL | LINK-PP / Pulse | |
| JXR1-0015NLT | LPJ0182BBNL | LINK-PP / Pulse | |
| LPJ0185NENL | LPJ0126ABNL | LINK-PP / Pulse | |
