Product Details
原产地: 广东-中国
品牌名称: LINK-PP
认证: ISO,SGS,Reach,UL,RoHS

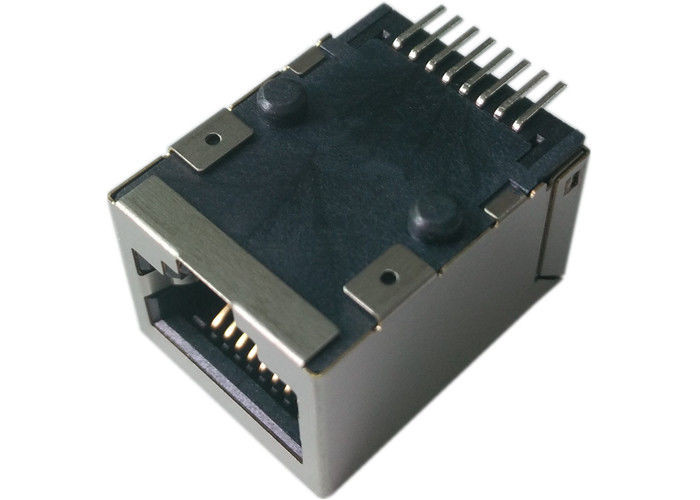

产品型号: LPJ19111DNL
Payment & Shipping Terms
最小订货量: 770
价格: 工厂价
包装: 120pcs/卷,720PCS/箱
交货周期: 现货
付款条款: 现金/月结15天/30天/60天
供货能力: 5.5KK/月
规格: |
LPJ19111DNL |
封装: |
贴片 |
速率: |
10/100Mbps 自适应 |
LED指示灯: |
无 |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
规格: |
LPJ19111DNL |
封装: |
贴片 |
速率: |
10/100Mbps 自适应 |
LED指示灯: |
无 |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
| Turn Ratio(±2%): | TX=1CT:1CT RX=1CT:CT | |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias | |
| Insertion Loss | -1.0dB MAX @ 1-65MHz | |
| Return Loss | -20dB MIN @ 1-10MHz | |
| -16dB MIN @ 10-30MHz | ||
| -12dB MIN @ 30-60MHz | ||
| -10dB MIN @ 60-100MHz | ||
| Cross talk | -40dB MIN @ 1-30MHz | |
| -35dB MIN @ 30-60MHz | ||
| -30dB MIN @ 60-100MHz | ||
| Common Mode Rejection | -30dB MIN @ 1-50MHz | |
| -20dB MIN @ 50-150MHz | ||
| Hipot Test | 1500Vrms MIN |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| LPJ0138GDNL | LPJ0158GDNL | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| LPJ0138CNL | LPJ0161BBNL | LINK-PP / Pulse | |
| LPJ0139GDNL | LPJ0162GDNL | LINK-PP / Pulse | |
| LPJ0141GENL | LPJ0165ABNL | LINK-PP / Pulse | |
| JG0-0023 | LPJ0113DNL | LINK-PP / Pulse | |
| JG0-0024 | JK0-0017NL | LINK-PP / Pulse | |
| JG0-0025 | JK0-0018NL | LINK-PP / Pulse | |
| JG0-0026 | JK0-0004 | LINK-PP / Pulse | |
| JG0-0027 | JK0-0014 | LINK-PP / Pulse | |
| JG0-0028 | JK0-0016 | LINK-PP / Pulse | 询价 |
| JG0-0031 | JK0-0017 | LINK-PP / Pulse | |
| JG0-0032 | JK0-0018 | LINK-PP / Pulse | |
| JG0-0045NL | JK0-0036NL | LINK-PP / Pulse | |
| JG0-0051NL | JK0654219NL | LINK-PP / Pulse | |
| JG0-0070NL | JK0-0036 | LINK-PP / Pulse | |
| JG0-0098NL | JK0-0036NL | LINK-PP / Pulse | 库存 |
| JG0-0129NL | JK0654219 | LINK-PP / Pulse | |
| JK0-0004NL | LPJ0167CNL | LINK-PP / Pulse | |
| JK0-0014NL | LPJ0172CNL | LINK-PP / Pulse | |
| JK0-0016NL | LPJ0176GENL | LINK-PP / Pulse | |
| LPJ0148HENL | LPJ0178ABNL | LINK-PP / Pulse | |
| LPJ0151GDNL | LPJ0125DNL | LINK-PP / Pulse | |
| JXR1-0015NL | LPJ0126ABNL | LINK-PP / Pulse | |
