Home > 产品 > RJ45连接器 10 / 100兆 > LPJ0012G7NL 单口 Rj45-10/100兆-直插 8P8C 屏蔽-弹片-LED指示灯

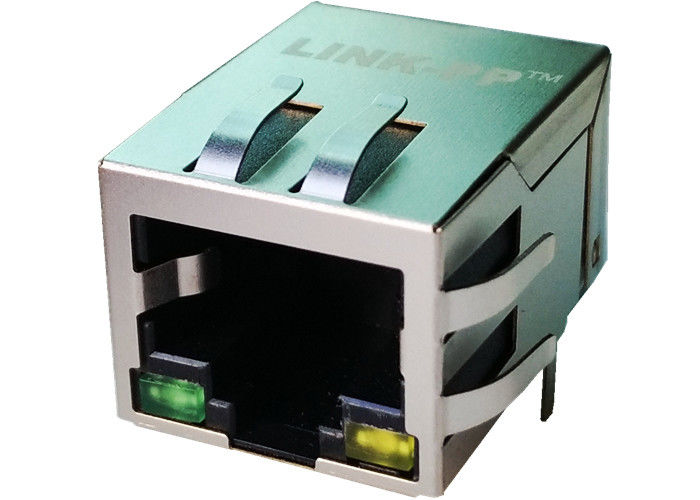

LPJ0012G7NL 单口 Rj45-10/100兆-直插 8P8C 屏蔽-弹片-LED指示灯

Product Details

原产地: Guangdong China

品牌名称: LINK-PP

认证: ISO9001,UL,Reach,SGS,RoHS

产品型号: LPJ0012G7NL

Payment & Shipping Terms

最小订货量: 500

价格: 工厂价

包装: 50个/盘,1200个/箱

交货周期: 现货

付款条款: 现金/月结15天/30天/60天

供货能力: 5.5KK/月

Get Best Price
:
规格:
LPJ0012G7NL
封装:
直插
速率:
10/100 兆
LED指示灯:
黄-绿灯
镀金:
6u
焊接:
波峰焊
规格书:
可提供
样品:
可提供( 免费)
规格:
LPJ0012G7NL
封装:
直插
速率:
10/100 兆
LED指示灯:
黄-绿灯
镀金:
6u
焊接:
波峰焊
规格书:
可提供
样品:
可提供( 免费)
LPJ0012G7NL 单口 Rj45-10/100兆-直插 8P8C 屏蔽-弹片-LED指示灯
LPJ0012G7NL 单口 Rj45-10/100兆-直插 8P8C 屏蔽-弹片-LED指示灯



Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green&Yellow/Green LED,Tab Down,RoHS
LINK-PP Part NumberLPJ0012G7NL
Application-LanETHERNET(NoN PoE)
AutomDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Cores per Port4
DiodesNO DIODES
LED OptionGREEN&YELLOW/GREEN
LatchTAB DOWN
Number of Ports1X1
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Package Height (Inches) 0.528
Package Height (mm) 13.40
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH
Speed10/100 BASE-T
Temperature0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
