Product Details
原产地: Guangdong China
品牌名称: LINK-PP
认证: ISO9001,UL,Reach,SGS,RoHS

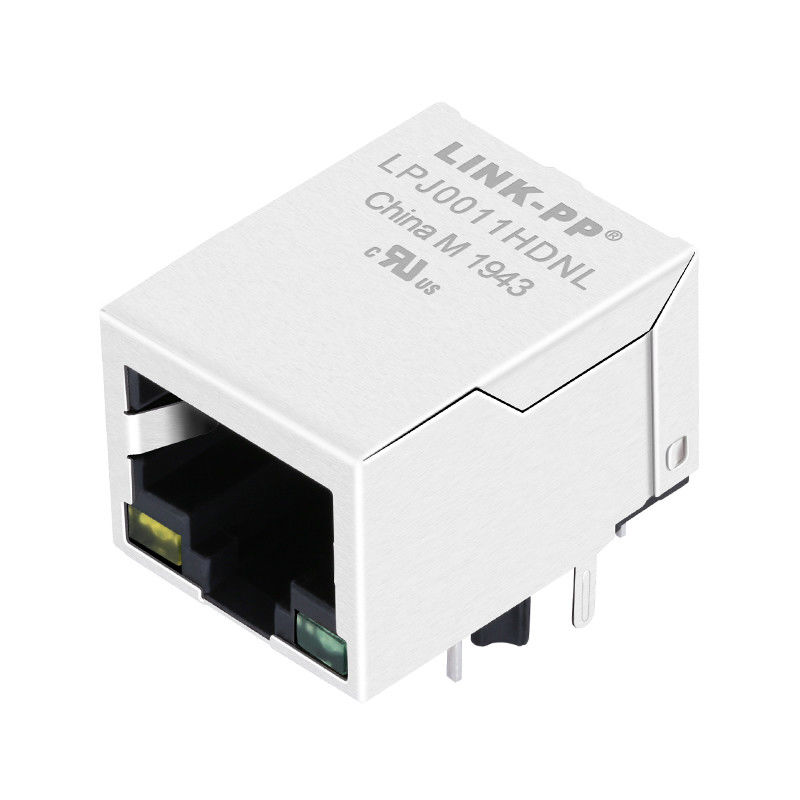

产品型号: LPJ0011HDNL
Payment & Shipping Terms
最小订货量: 500
价格: 工厂价
包装: 50个/盘,1200个/箱
交货周期: 现货
付款条款: 现金/月结15天/30天/60天
供货能力: 5.5KK/月
规格: |
LPJ0011HDNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
规格: |
LPJ0011HDNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
单口-快速以太网-Rj45 连接器.
| Turn Ratio(±2%): | TX=1CT:1CT, RX=1CT:1CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. / -40℃ TO 85℃. |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| LPJ0026GENL | LPJ0034GHNL | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| LPJ0026HDNL | LPJ0034BBNL | LINK-PP / Pulse | |
| LPJ0034ABNL | LPJ0034EBNL | LINK-PP / Pulse | |
| LPJ0034GDNL | LPJ0034CNL | LINK-PP / Pulse | |
| JW0-0013NL | J1006D21 | LINK-PP / Pulse | |
| HX2260FNL | HX2260FNLT | LINK-PP / Pulse | |
| E2467FNL | E2467FNLT | LINK-PP / Pulse | |
| EX2024FNL | EX2024FNLT | LINK-PP / Pulse | |
| H1100FNL | H1100FNLT | LINK-PP / Pulse | |
| ST4202FNL | ST4202FNLT | LINK-PP / Pulse | 询价 |
| ST7010FNL | ST7010FNLT | LINK-PP / Pulse | |
| ST7011FNL | ST7011FNLT | LINK-PP / Pulse | |
| ST7033FNL | ST7033FNLT | LINK-PP / Pulse | |
| H6072NL | H6072NLT | LINK-PP / Pulse | |
| H6103NL | H6103NLT | LINK-PP / Pulse | |
| H2019FNL | LINK-PP / Pulse | 库存 | |
| J1011F01P | J1026F01NL | LINK-PP / Pulse | |
| J1011F21P | J1026F01PNL | LINK-PP / Pulse | |
| J1011F32NL | J1026F21CNL | LINK-PP / Pulse | |
| J1012F01C | JP006821UNL | LINK-PP / Pulse | |
| J1012F01C | JP011821UNL | LINK-PP / Pulse | |
| LPJ0013AHNL | LPJ0013DNL | LINK-PP / Pulse | |
| LPJ0013BBNL | JV006I21 | LINK-PP / Pulse | |
