原产地: Guangdong China
品牌名称: LINK-PP
认证: ISO9001,UL,Reach,SGS,RoHS

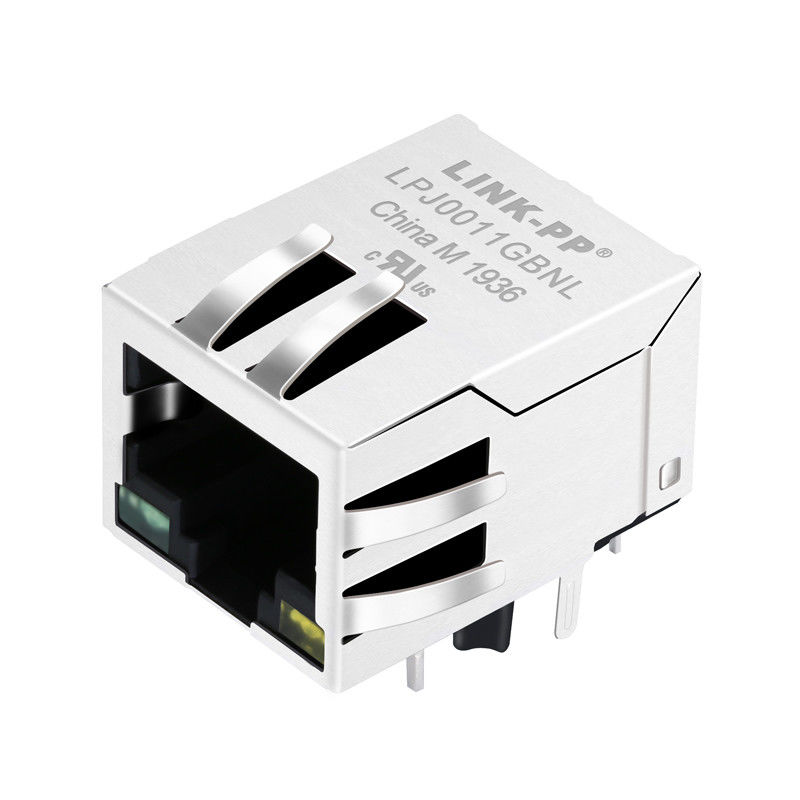

产品型号: LPJ0011GDNL
最小订货量: 500
价格: 工厂价
包装: 50个/盘,1200个/箱
交货周期: 现货
付款条款: 现金/月结15天/30天/60天
供货能力: 5.5KK/月
规格: |
LPJ0011GDNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
规格: |
LPJ0011GDNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
单口-快速以太网-Rj45 连接器.
| Turn Ratio(±2%): | TX=1CT:1CT, RX=1CT:1CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. / -40℃ TO 85℃. |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| LPJ0073ABNL | LPJ0070CNL | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| LPJ0073BBNL | LPJ0070HDNL | LINK-PP / Pulse | |
| LPJ0075AHNL | LPJ0073GENL | LINK-PP / Pulse | |
| J00-0061 | J0024D21 | LINK-PP / Pulse | |
| J00-0064 | J0024D21B | LINK-PP / Pulse | |
| J00-0065 | J0026D01 | LINK-PP / Pulse | |
| J00-0066 | J0026D01B | LINK-PP / Pulse | |
| J00-0046NL | J0026D01E | LINK-PP / Pulse | |
| J00-0064NL | J0026D01F | LINK-PP / Pulse | |
| J0006D01B | J0026D21 | LINK-PP / Pulse | 询价 |
| J0006D21 | J0026D21B | LINK-PP / Pulse | |
| J0006D21B | J0026D21E | LINK-PP / Pulse | |
| J0011D01 | J0026D21F | LINK-PP / Pulse | |
| J0011D01B | J0026D21G | LINK-PP / Pulse | |
| J0011D21 | J0033D21 | LINK-PP / Pulse | |
| J0011D21B | J0035D21B | LINK-PP / Pulse | 库存 |
| J0011D21E | J0048D21M | LINK-PP / Pulse | |
| J0012D21 | J0073D01B | LINK-PP / Pulse | |
| J0018D21 | LPJ0070GDNL | LINK-PP / Pulse | |
| J0018D21E | LPJ0070GBNL | LINK-PP / Pulse | |
| J00-0042 | LPJ0070A34NL | LINK-PP / Pulse | |
| LPJ0055CNL | LPJ0049AZNL | LINK-PP / Pulse | |
| JXR1-0015NL | JKM-0011NL | LINK-PP / Pulse | |
