原产地: Guangdong China
品牌名称: LINK-PP
认证: ISO9001,UL,Reach,SGS,RoHS
产品型号: LPJD0601BGNL
最小订货量: 1200
价格: 据数量不等
包装: 50个/盘,1200个/箱
交货周期: 4 weeks
付款条款: T/T
供货能力: 3000K-PCS/月
规格: |
LPJD0601BGNL |
封装: |
直插 |
速率: |
10/100/1000 兆 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
规格: |
LPJD0601BGNL |
封装: |
直插 |
速率: |
10/100/1000 兆 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |

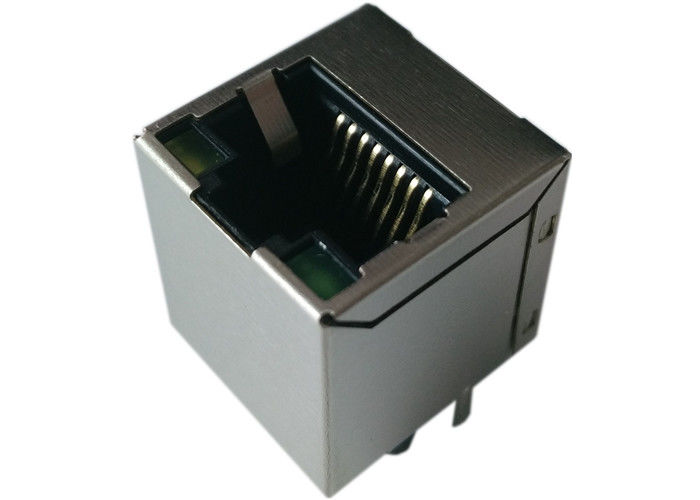

单口-快速以太网-Rj45 连接器.
| Turn Ratio(±2%): | TX=1CT:1CT, RX=1CT:1CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. / -40℃ TO 85℃. |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| J8064D628A | LPJ26204AENL | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| J2042H3ANL | LPJ47202CNL | LINK-PP / Pulse | |
| J20-0015NL | LPJ67312A43NL | LINK-PP / Pulse | |
| JW0-0009NL | LPJU5009B28NL | LINK-PP / Pulse | |
| J1006F01PNL | LPJ1006BBNL | LINK-PP / Pulse | |
| JXR1-0012NL | LPJ6026ABNL | LINK-PP / Pulse | |
| J00-0014NL | LPJ0011DNL | LINK-PP / Pulse | |
| J0C-0005NL | LPJ0011DNL | LINK-PP / Pulse | |
| J1006F01PNL | LPJ1006BBNL | LINK-PP / Pulse | |
| J1006F21PNL | LPJ1006CNL | LINK-PP / Pulse | 询价 |
| J1011F21PNL | LPJ1011ABNL | LINK-PP / Pulse | |
| J1011F32NL | LPJ1011CNL | LINK-PP / Pulse | |
| J1012F01CNL | LPJ1012BGNL | LINK-PP / Pulse | |
| J1012F21CNL | LPJ1012AGNL | LINK-PP / Pulse | |
| J1026F01NL | LPJ1026DNL | LINK-PP / Pulse | |
| J1026F01PNL | LPJ1026BBNL | LINK-PP / Pulse | 库存 |
| J1026F21CNL | LPJ1026AGNL | LINK-PP / Pulse | |
| JK0-0016NL | LPJK0014AINL | LINK-PP / Pulse | |
| JK0-0036NL | LPJK0036AINL | LINK-PP / Pulse | |
| JK0-0044 | LPJK0010CNL | LINK-PP / Pulse | |
| JK0-0145NL | LPJK1045AHNL | LINK-PP / Pulse | |
| JP06821UNL | LPJ2006KONL | LINK-PP / Pulse | |
| JX0026D21BNl | LPJ0026ABNL | LINK-PP / Pulse | |
