原产地: Guangdong China
品牌名称: LINK-PP
认证: ISO9001,UL,Reach,SGS,RoHS
产品型号: LPJD4011BENL
最小订货量: 1200
价格: 据数量不等
包装: 50个/盘,1200个/箱
交货周期: 库存 or 2 weeks
付款条款: T/T
供货能力: 3000K-PCS/月
规格: |
LPJD4011BENL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
规格: |
LPJD4011BENL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |

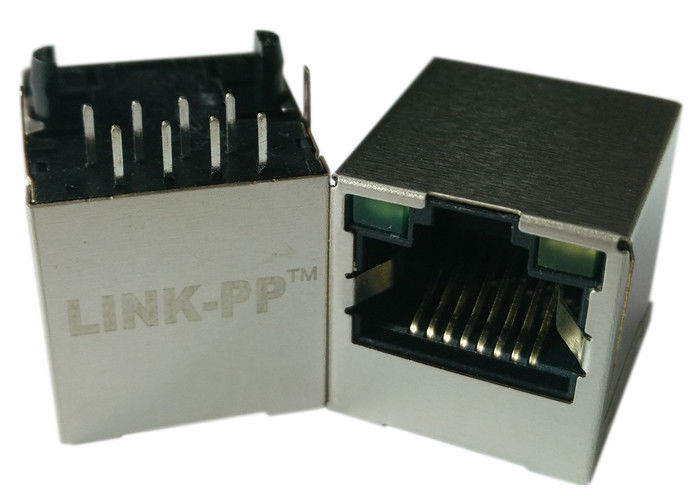

单口-快速以太网-Rj45 连接器.
| Turn Ratio(±2%): | TX=1CT:1CT, RX=1CT:1CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | -40℃ TO 85℃. |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| B2088 | LPA2088 | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| B2090 | LPA2090 | LINK-PP / Pulse | |
| B2091 | LPA2091 | LINK-PP / Pulse | |
| B2098 | LPA2098 | LINK-PP / Pulse | |
| B2099 | LPA2099 | LINK-PP / Pulse | |
| B2100 | LPA2100 | LINK-PP / Pulse | |
| B2102 | LPA2102 | LINK-PP / Pulse | |
| B2127A | LPA2127A | LINK-PP / Pulse | |
| B2127R | LPA2127R | LINK-PP / Pulse | |
| B2136 | LPA2136 | LINK-PP / Pulse | 询价 |
| B2157 | LPA2157 | LINK-PP / Pulse | |
| B4004 | LPA4004 | LINK-PP / Pulse | |
| B4008 | LPA4008 | LINK-PP / Pulse | |
| B4010 | LPA4010 | LINK-PP / Pulse | |
| B4015 | LPA4015 | LINK-PP / Pulse | |
| B4016 | LPA4016 | LINK-PP / Pulse | 库存 |
| B4017 | LPA4017 | LINK-PP / Pulse | |
| B4018 | LPA4018 | LINK-PP / Pulse | |
| B4023 | LPA4023 | LINK-PP / Pulse | |
| B4025 | LPA4025 | LINK-PP / Pulse | |
| B4031 | LPA4031 | LINK-PP / Pulse | |
| B4032 | LPA4032 | LINK-PP / Pulse | |
| B4065 | LPA4065 | LINK-PP / Pulse | |
