原产地: Guangdong China
品牌名称: LINK-PP
认证: ISO9001,UL,Reach,SGS,RoHS
产品型号: LPJD0013BHNL
最小订货量: 1200
价格: 据数量不等
包装: 50个/盘,1200个/箱
交货周期: 库存 or 2 weeks
付款条款: T/T
供货能力: 3000K-PCS/月
规格: |
LPJD0013BHNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
规格: |
LPJD0013BHNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |

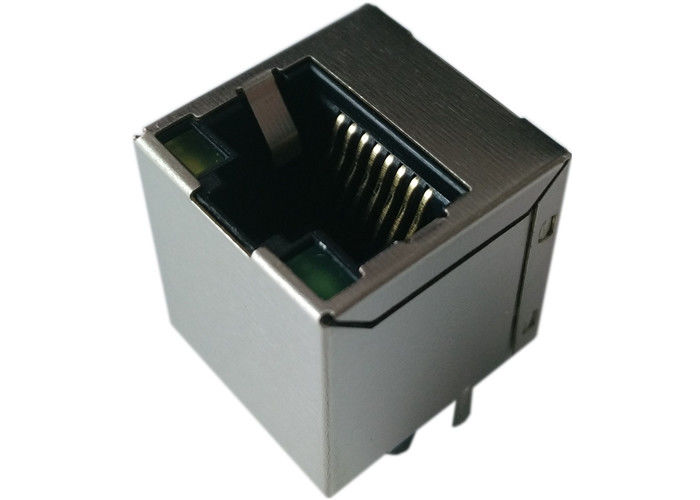

单口-快速以太网-Rj45 连接器.
| Turn Ratio(±2%): | TX=1CT:1CT, RX=1CT:1CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. / -40℃ TO 85℃. |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| PE68841 | LPA88841 | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| PE68861 | LPB88861 | LINK-PP / Pulse | |
| PE68877 | LPB88877 | LINK-PP / Pulse | |
| PEH0001 | LP0001 | LINK-PP / Pulse | |
| PE68881 | LPB88881 | LINK-PP / Pulse | |
| PE69012 | LP89012 | LINK-PP / Pulse | |
| PE69300 | LPA89300 | LINK-PP / Pulse | |
| PET1129 | LPB1129 | LINK-PP / Pulse | |
| PET9021 | LPB9021 | LINK-PP / Pulse | |
| ST4160 | LP4160 | LINK-PP / Pulse | 询价 |
| ST4161 | LP4161 | LINK-PP / Pulse | |
| T1114 | LPB1114 | LINK-PP / Pulse | |
| T1124 | LPB1124 | LINK-PP / Pulse | |
| T1129 | LPB1129 | LINK-PP / Pulse | |
| T1137 | LPB4437 | LINK-PP / Pulse | |
| T1142 | LPB1142 | LINK-PP / Pulse | 库存 |
| T1144 | LPB1144 | LINK-PP / Pulse | |
| T1180 | LPB1180 | LINK-PP / Pulse | |
| T1190 | LPB1190 | LINK-PP / Pulse | |
| T1190T | LPB1190T | LINK-PP / Pulse | |
| T1230 | LPB1230 | LINK-PP / Pulse | |
| T1231 | LPB1231 | LINK-PP / Pulse | |
| T3001 | LPB3001 | LINK-PP / Pulse | |
