Product Details
原产地: 广东-中国
品牌名称: LINK-PP
认证: ISO,SGS,Reach,UL,RoHS

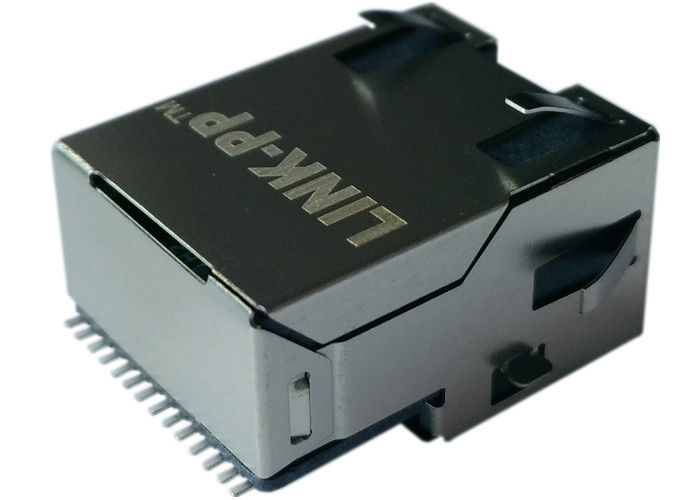

产品型号: LPJG19606ABNL
Payment & Shipping Terms
最小订货量: 770
价格: 工厂价
包装: 110pcs/卷,770pcs/箱
交货周期: 现货
付款条款: T/T
规格: |
LPJG19606ABNL |
封装: |
贴片 |
速率: |
10/100/1000Mbps 自适应 |
LED指示灯: |
黄绿 灯 |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
规格: |
LPJG19606ABNL |
封装: |
贴片 |
速率: |
10/100/1000Mbps 自适应 |
LED指示灯: |
黄绿 灯 |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
| Turn Ratio(±2%) | TX=1CT:1CT RX=1CT:CT | |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias | |
| Insertion Loss | -1.0dB MAX @ 1-65MHz | |
| Return Loss | -20dB MIN @ 1-10MHz | |
| -16dB MIN @ 10-30MHz | ||
| -12dB MIN @ 30-60MHz | ||
| -10dB MIN @ 60-100MHz | ||
| Cross talk | -40dB MIN @ 1-30MHz | |
| -35dB MIN @ 30-60MHz | ||
| -30dB MIN @ 60-100MHz | ||
| Common Mode Rejection | -30dB MIN @ 1-50MHz | |
| -20dB MIN @ 50-150MHz | ||
| Hipot Test | 1500Vrms MIN |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| H1115 | LP1115 | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| H1117 | LP1117 | LINK-PP / Pulse | |
| H1129 | LP1129 | LINK-PP / Pulse | |
| H1154 | LP1154 | LINK-PP / Pulse | |
| H1161 | LP1161 | LINK-PP / Pulse | |
| H1164 | LP1164 | LINK-PP / Pulse | |
| H5004 | LP5004 | LINK-PP / Pulse | |
| H5007 | LP5007 | LINK-PP / Pulse | |
| H5009 | LP5009 | LINK-PP / Pulse | |
| HX1198 | LP1198 | LINK-PP / Pulse | 询价 |
| LT1101 | LP1101 | LINK-PP / Pulse | |
| LT6003 | LP6003 | LINK-PP / Pulse | |
| PE-69012 | LP89012 | LINK-PP / Pulse | |
| PE65507 | LP85507 | LINK-PP / Pulse | |
| PE-64103 | LP84103 | LINK-PP / Pulse | |
| PE-64108 | LP84108 | LINK-PP / Pulse | 库存 |
| PE-64503 | LP84503 | LINK-PP / Pulse | |
| PE-64951 | LPB84951 | LINK-PP / Pulse | |
| PE-65263 | LPB85263 | LINK-PP / Pulse | |
| PE-65389 | LPB85389 | LINK-PP / Pulse | |
| PE-65421 | LP85421 | LINK-PP / Pulse | |
| PE-65424 | LP85424 | LINK-PP / Pulse | |
| PE-65434 | LP85434 | LINK-PP / Pulse | |
