Product Details
原产地: 广东-中国
品牌名称: LINK-PP
认证: ISO,SGS,Reach,UL,RoHS

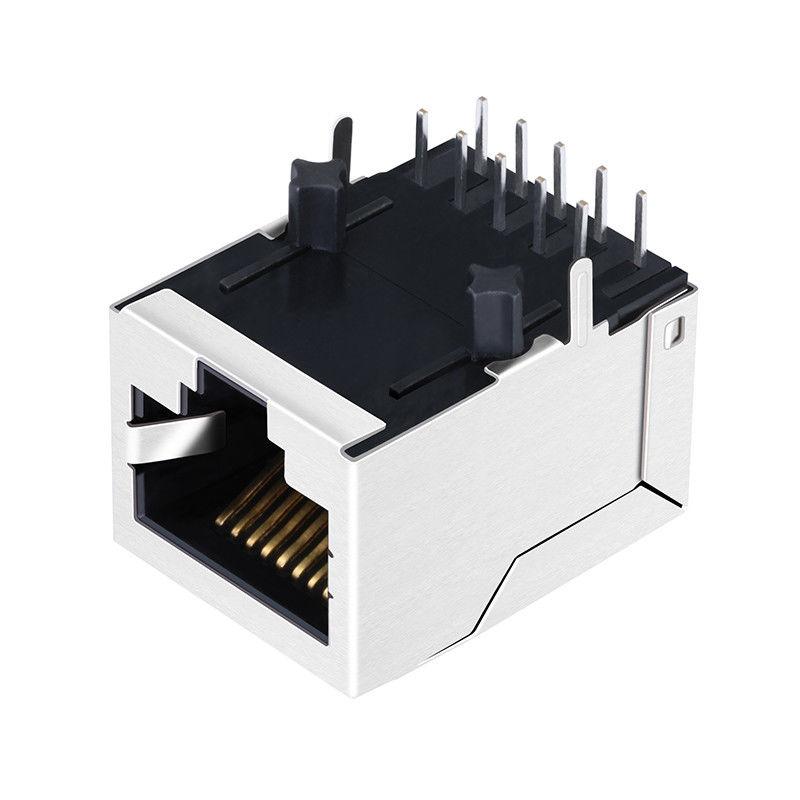

产品型号: LPJG4801DNL
Payment & Shipping Terms
最小订货量: 1200
价格: 工厂价
包装: 50pcs/盘,1200pcs/箱
交货周期: 3-4 周
付款条款: T/T
规格: |
LPJG4801DNL |
封装: |
贴片 |
速率: |
10/100/1000Mbps 自适应 |
LED指示灯: |
无 |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
规格: |
LPJG4801DNL |
封装: |
贴片 |
速率: |
10/100/1000Mbps 自适应 |
LED指示灯: |
无 |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
| Turn Ratio(±2%) | TX=1CT:1CT RX=1CT:CT | |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias | |
| Insertion Loss | -1.0dB MAX @ 1-65MHz | |
| Return Loss | -20dB MIN @ 1-10MHz | |
| -16dB MIN @ 10-30MHz | ||
| -12dB MIN @ 30-60MHz | ||
| -10dB MIN @ 60-100MHz | ||
| Cross talk | -40dB MIN @ 1-30MHz | |
| -35dB MIN @ 30-60MHz | ||
| -30dB MIN @ 60-100MHz | ||
| Common Mode Rejection | -30dB MIN @ 1-50MHz | |
| -20dB MIN @ 50-150MHz | ||
| Hipot Test | 1500Vrms MIN |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| B6013 | LPA6013 | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| BX4037 | LPA4037 | LINK-PP / Pulse | |
| BX4038 | LPA4038 | LINK-PP / Pulse | |
| BX4059 | LPA4059 | LINK-PP / Pulse | |
| BX4060 | LPA4060 | LINK-PP / Pulse | |
| E2003 | LP2003 | LINK-PP / Pulse | |
| E2009 | LP2009 | LINK-PP / Pulse | |
| E2023 | LP2023 | LINK-PP / Pulse | |
| E4001 | LP4001 | LINK-PP / Pulse | |
| E5017 | LP5017 | LINK-PP / Pulse | 询价 |
| E6001 | LP6001 | LINK-PP / Pulse | |
| H0001 | LP0001 | LINK-PP / Pulse | |
| H0009 | LP0009 | LINK-PP / Pulse | |
| H1012 | LP1012 | LINK-PP / Pulse | |
| H1013 | LP1013 | LINK-PP / Pulse | |
| H1015 | LP1015 | LINK-PP / Pulse | 库存 |
| H1016 | LP1016 | LINK-PP / Pulse | |
| H1019 | LP1019 | LINK-PP / Pulse | |
| H1026 | LP1026 | LINK-PP / Pulse | |
| H10260 | LP10260 | LINK-PP / Pulse | |
| H1028 | LP1028 | LINK-PP / Pulse | |
| H1036 | LP1036 | LINK-PP / Pulse | |
| H1038 | LP1038 | LINK-PP / Pulse | |
