原产地: 广东-中国
品牌名称: LINK-PP
认证: ISO,SGS,Reach,UL,RoHS

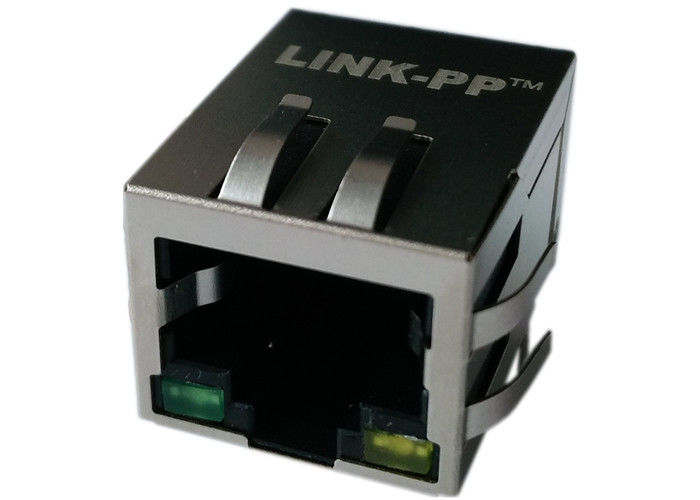

产品型号: LPJG0801ABNL
最小订货量: 1200
价格: 工厂价
包装: 50pcs/盘,1200pcs/箱
交货周期: 现货
付款条款: T/T
规格: |
LPJG0801ABNL |
封装: |
贴片 |
速率: |
10/100/1000Mbps 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
规格: |
LPJG0801ABNL |
封装: |
贴片 |
速率: |
10/100/1000Mbps 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
| Turn Ratio(±2%): | TX=1CT:1CT RX=1CT:CT | |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias | |
| Insertion Loss | -1.0dB MAX @ 1-65MHz | |
| Return Loss | -20dB MIN @ 1-10MHz | |
| -16dB MIN @ 10-30MHz | ||
| -12dB MIN @ 30-60MHz | ||
| -10dB MIN @ 60-100MHz | ||
| Cross talk | -40dB MIN @ 1-30MHz | |
| -35dB MIN @ 30-60MHz | ||
| -30dB MIN @ 60-100MHz | ||
| Common Mode Rejection | -30dB MIN @ 1-50MHz | |
| -20dB MIN @ 50-150MHz | ||
| Hipot Test | 1500Vrms MIN |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| LPJ0215DNL | LPJ0231FBNL | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| B2013FNLT | LPJ0232GDNL | LINK-PP / Pulse | |
| C2267FNLT | LPJ0234XDNL | LINK-PP / Pulse | |
| B2005NL | LPJ0212GENL | LINK-PP / Pulse | |
| B20013NL | LPJ0215AANL | LINK-PP / Pulse | |
| JTG-0006NL | B2013FNL | LINK-PP / Pulse | |
| JTG-0010NL | C2267FNL | LINK-PP / Pulse | |
| JTH-0001NL | B2005 | LINK-PP / Pulse | |
| H6030NL | B2013 | LINK-PP / Pulse | |
| H6031NL | B2023 | LINK-PP / Pulse | 询价 |
| H6032NL | B2024 | LINK-PP / Pulse | |
| H6033NL | B2025 | LINK-PP / Pulse | |
| H6034NL | B2026 | LINK-PP / Pulse | |
| H6035NL | LPJ0188GDNL | LINK-PP / Pulse | |
| H6036NL | LPJ0188CNL | LINK-PP / Pulse | |
| H6500NL | H6500NLT | LINK-PP / Pulse | 库存 |
| H6501NL | H6501NLT | LINK-PP / Pulse | |
| H6502NL | H6502NLT | LINK-PP / Pulse | |
| H6503NL | H6503NLT | LINK-PP / Pulse | |
| H6504NL | H6504NLT | LINK-PP / Pulse | |
| H6505NL | H6505NLT | LINK-PP / Pulse | |
| H6506NL | H6506NLT | LINK-PP / Pulse | |
| H6507NL | H6507NLT | LINK-PP / Pulse | |
