原产地: Guangdong China
品牌名称: LINK-PP
认证: ISO9001,UL,Reach,SGS,RoHS

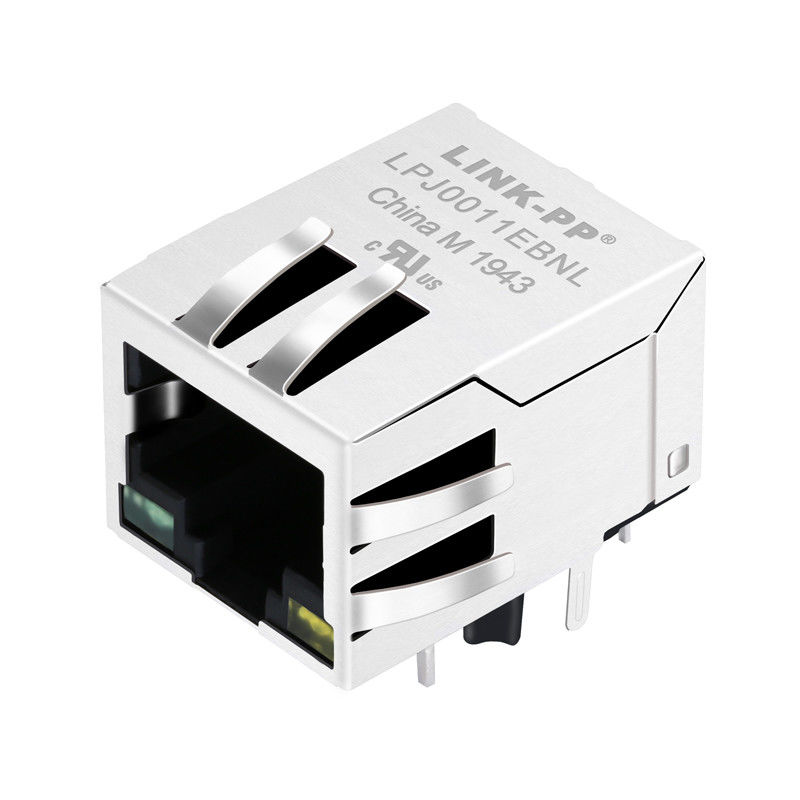

产品型号: LPJ0011EBNL
最小订货量: 500
价格: 工厂价
包装: 50个/盘,1200个/箱
交货周期: 现货
付款条款: 现金/月结15天/30天/60天
供货能力: 5.5KK/月
规格: |
LPJ0011EBNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
规格: |
LPJ0011EBNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
单口-快速以太网-Rj45 连接器.
| Turn Ratio(±2%): | TX=1CT:1CT, RX=1CT:1CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. / -40℃ TO 85℃. |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| JT4-1109HL | JW0-0009NL | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| JT4-1120HL | JY0-0016NL | LINK-PP / Pulse | |
| HX1324FNL | J1006F01PNL | LINK-PP / Pulse | |
| JW0-0006NL | J1006F21NL | LINK-PP / Pulse | |
| JW0-0013NL | J1006D21 | LINK-PP / Pulse | |
| HX2260FNL | HX2260FNLT | LINK-PP / Pulse | |
| 23Z467SMNL | 23Z467SMNLT | LINK-PP / Pulse | |
| E2023FNL | E2023FNLT | LINK-PP / Pulse | |
| E2023NL | E2023NLT | LINK-PP / Pulse | |
| E2032FNL | E2032FNLT | LINK-PP / Pulse | 询价 |
| E2081FNL | E2081FNLT | LINK-PP / Pulse | |
| E2082FNL | E2082FNLT | LINK-PP / Pulse | |
| E2454FNL | E2454FNLT | LINK-PP / Pulse | |
| E2457FNL | E2457FNLT | LINK-PP / Pulse | |
| E2458FNL | E2458FNLT | LINK-PP / Pulse | |
| E2466FNL | E2466FNLT | LINK-PP / Pulse | 库存 |
| 23Z356SMQNL | J1011F01PNL | LINK-PP / Pulse | |
| J1012F21CNL | J1011F01P | LINK-PP / Pulse | |
| J1012F21KNL | J1011F21PNL | LINK-PP / Pulse | |
| J1012F21RNL | J1012F01CNL | LINK-PP / Pulse | |
| LPJ0013ABNL | LPJ0013CNL | LINK-PP / Pulse | |
| LPJ0013AHNL | LPJ0013DNL | LINK-PP / Pulse | |
| LPJ0013BBNL | JV006I21 | LINK-PP / Pulse | |
