原产地: Guangdong China
品牌名称: LINK-PP
认证: ISO9001,UL,Reach,SGS,RoHS

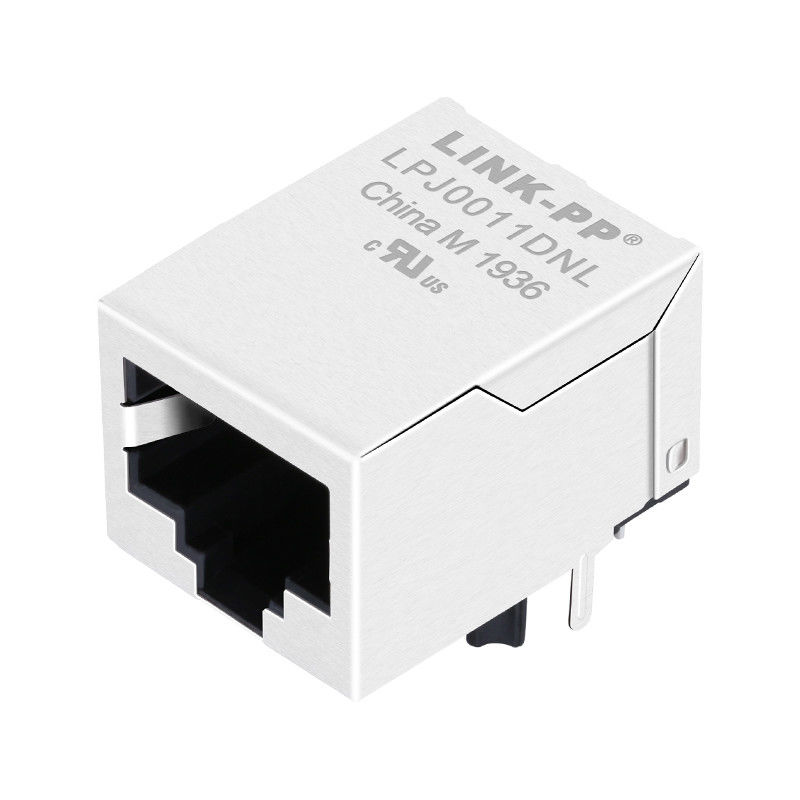

产品型号: LPJ0011DNL
最小订货量: 500
价格: 工厂价
包装: 50个/盘,1200个/箱
交货周期: 现货
付款条款: 现金/月结15天/30天/60天
供货能力: 5.5KK/月
规格: |
LPJ0011DNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
无 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
规格: |
LPJ0011DNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
无 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
单口-快速以太网-Rj45 连接器.
| Turn Ratio(±2%): | TX=1CT:1CT, RX=1CT:1CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. / -40℃ TO 85℃. |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| JT4-1109HL | JW0-0009NL | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| JT4-1120HL | JY0-0016NL | LINK-PP / Pulse | |
| HX1324FNL | HX1324FNLT | LINK-PP / Pulse | |
| HX1393FNL | HX1393FNLT | LINK-PP / Pulse | |
| HX2019FNL | HX2019FNLT | LINK-PP / Pulse | |
| HX2260FNL | HX2260FNLT | LINK-PP / Pulse | |
| HX2305FNL | HX2305FNLT | LINK-PP / Pulse | |
| HX2326FNL | HX2326FNLT | LINK-PP / Pulse | |
| HX2326NL | HX2326NLT | LINK-PP / Pulse | |
| HX5004EFNL | HX5004EFNLT | LINK-PP / Pulse | 询价 |
| HX5004ENL | HX5004ENLT | LINK-PP / Pulse | |
| HX5008FNL | HX5008FNLT | LINK-PP / Pulse | |
| HX5012FNL | HX5012FNLT | LINK-PP / Pulse | |
| HX5014FNL | HX5014FNLT | LINK-PP / Pulse | |
| HX5019FNL | HX5019FNLT | LINK-PP / Pulse | |
| HX5020FNL | HX5020FNLT | LINK-PP / Pulse | 库存 |
| HX5062FNL | HX5062FNLT | LINK-PP / Pulse | |
| HX5084FNL | HX5084FNLT | LINK-PP / Pulse | |
| HX1302FNL | HX1302FNLT | LINK-PP / Pulse | |
| LPJ0012HGNL | LPJ0012NENL | LINK-PP / Pulse | |
| LPJ0012HBNL | LPJ0012NNL | LINK-PP / Pulse | |
| LPJ0012NDNL | LPJ0012-9GDNL | LINK-PP / Pulse | |
| J0G-0009NL | JV006I21 | LINK-PP / Pulse | |
