Product Details
原产地: Guangdong China
品牌名称: LINK-PP
认证: ISO9001,UL,Reach,SGS,RoHS

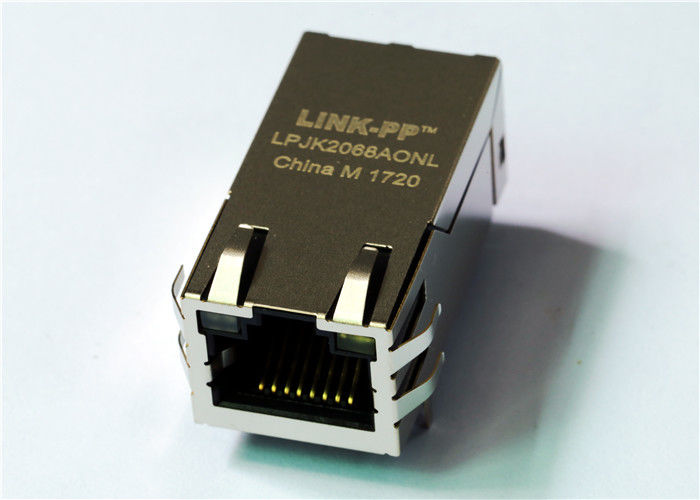

产品型号: LPJK2068AONL
Payment & Shipping Terms
最小订货量: 50/500/2000
价格: Supportive
包装: 60 只 /盘, 960只/箱
交货周期: Stock or 5 weeks
供货能力: 400K/月
规格: |
LPJK2068AONL |
封装: |
直插 |
速率: |
千兆以太网 |
样品: |
3-5 只 免费 |
温度: |
民用级 |
屏蔽: |
是 |
规格: |
LPJK2068AONL |
封装: |
直插 |
速率: |
千兆以太网 |
样品: |
3-5 只 免费 |
温度: |
民用级 |
屏蔽: |
是 |
技术规格
Electrical Specifications @25℃
1.Inductance: 350uH Min
@ 100KHz,0.1V,20mA DC BIAS
2.Turns Ratio(±2%): 1CT∶1CT
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(load 100Ω):
1-30MHz:-18dB Min
30-60MHz:-16dB Min
60-80MHz:-12dB Min
80-100MHz:-10dB Min
5.Crosstalk:
1-100MHz:-30dB Min
6.Common Mode Rejection:
1-100MHz:-30dB Min
100-500MHz:-20dB Min
7.Balanced DC Line Current
With Up to 720mA DC Continuous Over 2 or 4 Pairs
1.15A Max For 200 Miliseconds
8.Hipot:1500Vrms Min @60Hz
9.Operating Temperature: 0℃～+70℃
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3at Standards,Power Rating with 600mA DC
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Number E484635
