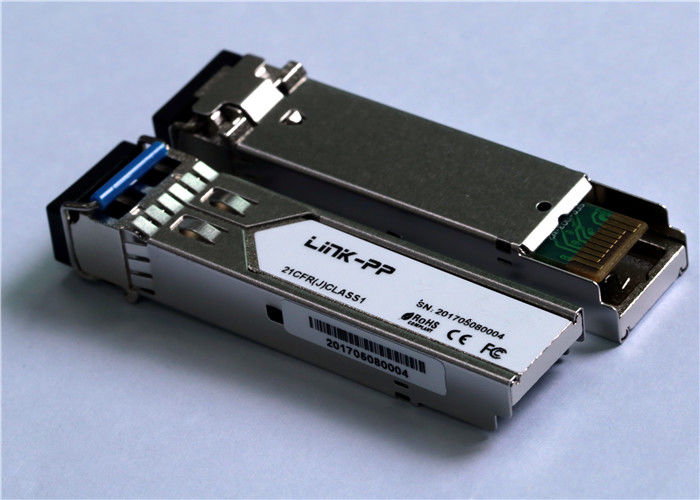

LP8524-S5DC 1.25Gbps SFP Transceiver, Multi Mode, 550m Reach 850nm, LC,with DDM

Name: LP8524-S5DC 1.25Gbps SFP Transceiver, Multi Mode, 550m Reach 850nm, LC,with DDM
Brand: LINK-PP
SKU: LP8524-S5DC
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (197 reviews)

原产地: 广东-中国

品牌名称: LINK-PP

认证: ISO,SGS,Reach,UL,RoHS

产品型号: LP8524-S5DC

最小订货量: 5

价格: 据量而定

包装: 10pcs/盘,200pcs/箱

交货周期: Stock

付款条款: T/T, Western Union,Paypal

供货能力: 2500000PCS / 月

Specifications:	LP8524-S5XX	P/N:	LP8524-S5DC
Standard:	SFP MSA And SFF-8472	Transceiver Type:	Compact RJ-45 Connector Assembly
Dimensions (W X D X H):	56mm X 13mm X 12mm	Operating Temperature:	Standard: 0 To +70°C ,Industrial: -40 To +85°C
Voltage:	+3.3V Single Power Supply	Speed:	1.25 Gigabit

Specifications:	LP8524-S5XX
P/N:	LP8524-S5DC
Standard:	SFP MSA And SFF-8472
Transceiver Type:	Compact RJ-45 Connector Assembly
Dimensions (W X D X H):	56mm X 13mm X 12mm
Operating Temperature:	Standard: 0 To +70°C ,Industrial: -40 To +85°C
Voltage:	+3.3V Single Power Supply
Speed:	1.25 Gigabit

LP8524-S5DC 1.25Gbps SFP Transceiver, Multi Mode, 550m Reach 850nm, LC,with DDM

LP8524-S5DC 1.25Gbps SFP Transceiver, Multi Mode, 550m Reach 850nm, LC,with DDM

Product Features

 Supports up to 1.25Gbps bit rates
 Hot-pluggable SFP footprint
 850nm VCSEL laser and PIN photo detector, Up to 550m for MMF transmission
 Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
 Compatible with RoHS
 Single +3.3V power supply
 Real Time Digital Diagnostic Monitoring
 Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C

Applications
 1.25Gbps Optical systems
 Gigabit Ethernet
 1.063Gbps Fiber Channel
 Other Optical links

Description
The SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps
and 550m transmission distance with MMF.
The transceiver consists of three sections: a VSCEL laser transmitter, a PIN photodiode integrated with
a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety
requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics
functions.

Ordering information

Part Number Product Description
LP8524-S5DC 850nm, 1.25Gbps, LC, 550m, 0°C~+70°C, with DDM
LP8524-S5DI 850nm, 1.25Gbps, LC, 550m, -40°C~+85°C, with DDM
LP8524-S5NC 850nm, 1.25Gbps, LC, 550m, 0°C~+70°C, without DDM
LP8524-S5NI 850nm, 1.25Gbps, LC, 550m, -40°C~+85°C, without DDM

LP8524-S5DC 1.25Gbps SFP Transceiver, Multi Mode, 550m Reach 850nm, LC,with DDM 0
