原产地: Guangdong China
品牌名称: LINK-PP
认证: ISO9001,UL,Reach,SGS,RoHS
产品型号: LPJK7001CNL
最小订货量: 1200
价格: 据数量不等
包装: 60个/盘,1200个/箱
交货周期: 4-5 weeks
付款条款: T/T
供货能力: 3000K-PCS/月
规格: |
LPJK7001CNL |
封装: |
直插 |
速率: |
10/100/1000 兆自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
规格: |
LPJK7001CNL |
封装: |
直插 |
速率: |
10/100/1000 兆自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |

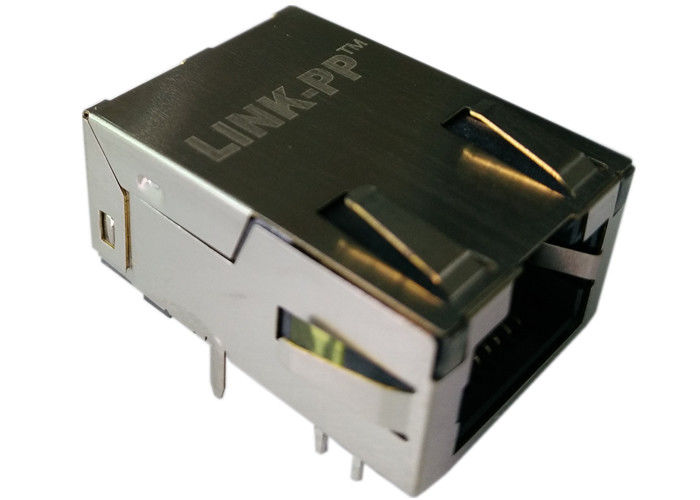

单口-快速以太网-超薄 Rj45 连接器: 24.04x17.78x11.30mm
| Turn Ratio(±2%): | TX=1CT:1CT, RX=1CT:1CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. / -40℃ TO 85℃. |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| LPJK7001AGNL | LPJK7036A109NL | LINK-PP / TE(Tyco) | PDF / 3D / STP / IGS |
| LPJK7001AONL | LPJK7036-1A98NL | LINK-PP / TE(Tyco) | |
| LPJK7001AHNL | LPJK7036B98NL | LINK-PP / TE(Tyco) | |
| LPJK7001CNL | LPJK70361A98NL | LINK-PP / TE(Tyco) | |
| LPJK7002A98NL | LPJK7036SA98NL | LINK-PP / TE(Tyco) | |
| LPJK7002SA98NL | LPJK7036CNL | LINK-PP / TE(Tyco) | |
| LPJK7003A98NL | LPJK7039AGNL | LINK-PP / TE(Tyco) | |
| LPJK7003B98NL | LPJK7039A55NL | LINK-PP / TE(Tyco) | |
| LPJK7003-7B98NL | LPJK7041A98NL | LINK-PP / TE(Tyco) | |
| LPJK7003A98NL-DJE | LPJK7401AGNL | LINK-PP / TE(Tyco) | 询价 |
| LPJK7003A97NL | LPJK7401AONL | LINK-PP / TE(Tyco) | |
| LPJK7003B97NL | LPJK7403B98NL | LINK-PP / TE(Tyco) | |
| LPJK7036A97NL | LPJK7403CNL | LINK-PP / TE(Tyco) | |
| LPJK7036A98NL | LPJK7426A98NL | LINK-PP / TE(Tyco) | |
| LPJK7436AHNL | LPJK7426B98NL | LINK-PP / TE(Tyco) | |
| LPJK7436CNL | LPJK7431SA98NL | LINK-PP / TE(Tyco) | 库存 |
| 5-1840450-7 | LPJK7436A98NL | LINK-PP / TE(Tyco) | |
| 2-1840450-9 | 1-1840540-0 | LINK-PP / TE(Tyco) | |
| 1840539-1 | 1-1840540-1 | LINK-PP / TE(Tyco) | |
| 1840539-2 | 2-1840540-6 | LINK-PP / TE(Tyco) | |
| 1840539-3 | 1840548-1 | LINK-PP / TE(Tyco) | |
| 1840539-4 | 1840548-8 | LINK-PP / TE(Tyco) | |
| 1840539-5 | 1-1840548-1 | LINK-PP / TE(Tyco) | |
