|Standard:||IEEE Std 802.3TM-2002,SFP MS||Transceiver Type:||Compact RJ-45 Connector Assembly|
|Dimensions (W X D X H):||11mm X 75mm X 11mm||Operating Temperature:||-40°C To +85°C|
|Voltage:||+3.3V Single Power Supply||Speed:||1.25 Gigabit|

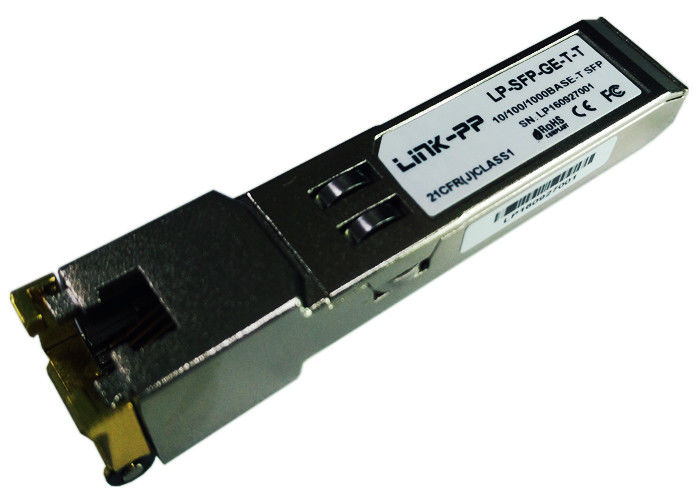

The Copper SFP Transceiver 10/100/1000Base-T or 1000Base-T only SFP Copper Transceiver is high
performance, cost effective module, compliant with the Gigabit Ethernet and 1000BASE-T standards as
specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supports 1000Mb/s data-rate up to 100 meters
reach over twisted-pair category 5 cable.
The Copper SFP Transceiver supports1000 Mb/s full duplex data-links with 5-level Pulse Amplitude
Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mb/s on each pair.
The Copper SFP Transceiver provides standard serial ID information compliant with SFP MSA, which
can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can
also be accessed via 2-wire serial bus at address ACh. The address of the PHY is 1010110x,where x is
the R/W bit.
1. LP-SFP-GE-T-T auto-negotiation capabilities is SGMII without Clock With SGMII auto-negotiation advertise all capabilities and
prefer master to 10/100/1000Mbps copper, 10/100/1000 BASE-T operation requires the host system to have an SGMII
interface without clocks. and auto-negotiation advertise all capabilities 10/100/1000Mbps
2. LP-SFP-GE-T auto-negotiation capabilities is SERDES without Clock With SERDES auto-negotiation , advertise only
1000BASE-T full duplex preferred master and 1000BASE-X auto-neg to 1000Mbps copper(GBIC). Only,. With a SERDES that
does not support SGMII, the module will operate at 1000BASE-T only.
