原产地: Guangdong China
品牌名称: LINK-PP
认证: ISO9001,UL,Reach,SGS,RoHS
产品型号: LPJD4012DNL
最小订货量: 1200
价格: 据数量不等
包装: 50个/盘,1200个/箱
交货周期: 库存 or 2 weeks
付款条款: T/T
供货能力: 3000K-PCS/月
规格: |
LPJD4012DNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
无 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
规格: |
LPJD4012DNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
无 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |

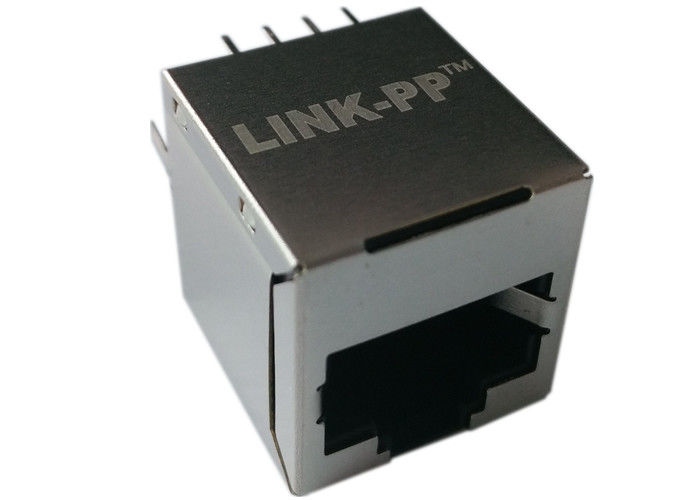

单口-快速以太网-Rj45 连接器.
| Turn Ratio(±2%): | TX=1CT:1CT, RX=1CT:1CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. / -40℃ TO 85℃. |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| J0011D01BNL | LPJ0011BBNL | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| J00-0051NL | LPJ0050ABNL | LINK-PP / Pulse | |
| J1011F01PNL | LPJ1011BBNL | LINK-PP / Pulse | |
| JK0-0044NL | LPJK0010CNL | LINK-PP / Pulse | |
| J0012D21NL | LPJ0012CNL | LINK-PP / Pulse | |
| J2045H3ANL | LPJ47212CNL | LINK-PP / Pulse | |
| J2045H3BNL | LPJ67212CNL | LINK-PP / Pulse | |
| J2045H3CNL | LPJ87212CNL | LINK-PP / Pulse | |
| J8064D648ANL | LPJ46204AENL | LINK-PP / Pulse | |
| J8064D688ANL | LPJ86204AENL | LINK-PP / Pulse | 询价 |
| J8064E64NL | LPJF46204CNL | LINK-PP / Pulse | |
| J8064E68NL | LPJF86204CNL | LINK-PP / Pulse | |
| J8064E62NL | LPJF26204CNL | LINK-PP / Pulse | |
| JK0654219NL | LPJK0071AWNL | LINK-PP / Pulse | |
| JP011821UNL | LPJ2011KONL | LINK-PP / Pulse | |
| JP026821UNL | LPJ2026KONL | LINK-PP / Pulse | 库存 |
| JY0-0016NL | LPJU4101AONL | LINK-PP / Pulse | |
| J8064D668A | LPJ66204AENL | LINK-PP / Pulse | |
| JG0-0024 | LPJG21851AWNL | LINK-PP / Pulse | |
| J0C-0006NL | LPJ19111CNL | LINK-PP / Pulse | |
| J0073D01BNL | LPJ0073BBNL | LINK-PP / Pulse | |
| J0C-0004 | LPJ19113CNL | LINK-PP / Pulse | |
| JXR1-0015NLT | LPJ6011BBNL | LINK-PP / Pulse | |
