产品

> 产品 > SFP光纤模块 > LP-GE2-T 10/100/1000Mbps, 光纤模块串行千兆媒体独立接口,带弹片

SFP光纤模块

(7)

: 工厂直销部先生

: +86-0752-3322915

: 86-0752-3161926

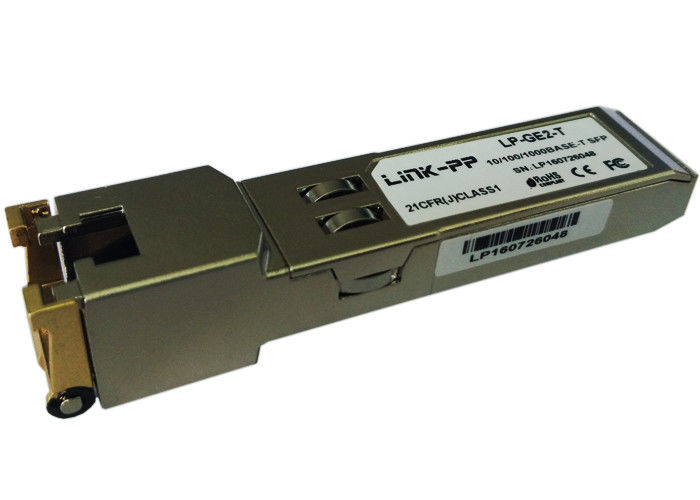

LP-GE2-T 10/100/1000Mbps, 光纤模块串行千兆媒体独立接口,带弹片

Name: LP-GE2-T 10/100/1000Mbps, 光纤模块 串行千兆媒体独立接口,带弹片
Brand: LINK-PP
SKU: LP-GE2-T
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (159 reviews)

原产地: 广东-中国

品牌名称: LINK-PP

认证: ISO,SGS,Reach,UL,RoHS

产品型号: LP-GE2-T

最小订货量: 20

价格: 据量而定

包装: 10pcs/盘,200pcs/箱

交货周期: 2 weeks

付款条款: T/T, Western Union,Paypal

供货能力: 2500000PCS / 月

Specifications:	LP-GE2-T	P/N:	LP-GE2-T
Standard:	IEEE 802.3ab 1000BASE-T Gigabit Ethernet	Transceiver Type:	SFP (Small Form Pluggable)
Connector:	RJ-45	Cable Type:	Cat. 5 Twisted-pair
Dimensions (W X D X H):	11mm X 75mm X 11mm	Operating Temperature:	0°C To 85°C

Specifications:	LP-GE2-T
P/N:	LP-GE2-T
Standard:	IEEE 802.3ab 1000BASE-T Gigabit Ethernet
Transceiver Type:	SFP (Small Form Pluggable)
Connector:	RJ-45
Cable Type:	Cat. 5 Twisted-pair
Dimensions (W X D X H):	11mm X 75mm X 11mm
Operating Temperature:	0°C To 85°C

LP-GE2-T 10/100/1000Mbps, 光纤模块串行千兆媒体独立接口,带弹片

Product Features

 Up to 1.25Gb/s bi-directional data links
 Hot-pluggable SFP footprint
 Extended case temperature range (0°C to +70°C )
 Fully metallic enclosure for low EMI
 Low power dissipation (1.05 W typical)
 Compact RJ-45 connector assembly
 Access to physical layer IC via 2-wire serial bus
 1000 BASE-T operation in host systems with SERDES interface
 10/100/1000Mbps compliant in host systems with SGMII interface

Applications

 1.25 Gigabit Ethernet over Cat 5 cable

Description

SFP-GEx-RJ45 Copper Small Form Pluggable (SFP) transceivers are high performance,
cost effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as
specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supp-Orting 1000Mbps data- rate up
to 100 meters reach over unshielded twisted-pair category 5 cables. The module
supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM)
signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The
module provides standard serial ID information compliant with SFP MSA, which can be
accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC
can also be accessed via 2wire serial bus at address A0h.
