Product Details
原产地: 广东-中国
品牌名称: LINK-PP
认证: ISO,SGS,Reach,UL,RoHS

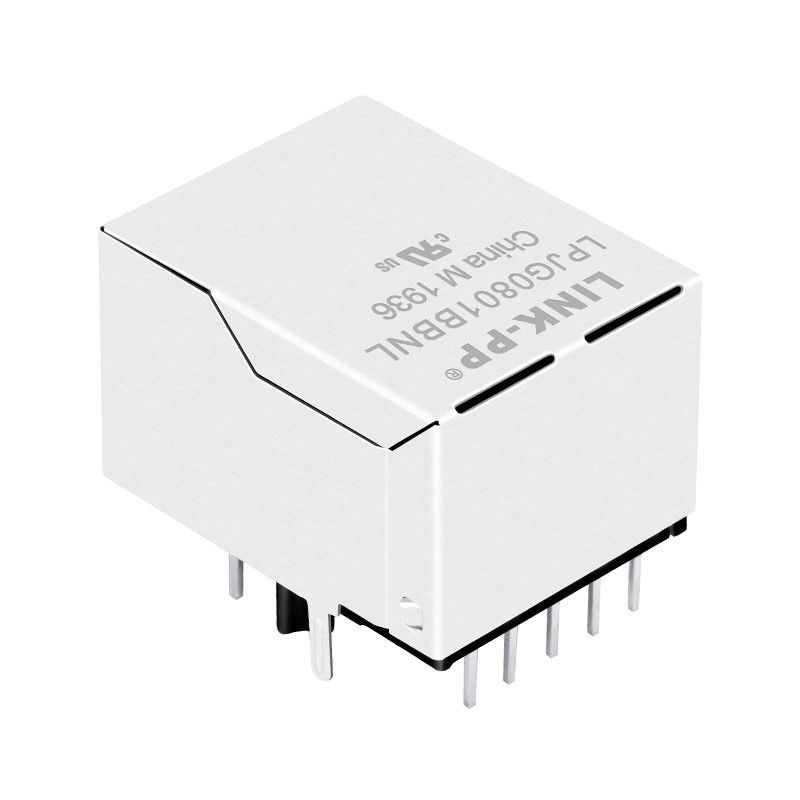

产品型号: LPJG0801BBNL
Payment & Shipping Terms
最小订货量: 1200
价格: 工厂价
包装: 50pcs/盘,1200pcs/箱
交货周期: 4 周
付款条款: T/T
规格: |
LPJG0801BBNL |
封装: |
贴片 |
速率: |
10/100/1000Mbps 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
规格: |
LPJG0801BBNL |
封装: |
贴片 |
速率: |
10/100/1000Mbps 自适应 |
LED指示灯: |
黄绿灯 |
镀金: |
6u |
焊接: |
回流焊 |
规格书: |
可提供 |
样品: |
可提供 |
| Turn Ratio(±2%): | TX=1CT:1CT RX=1CT:CT | |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias | |
| Insertion Loss | -1.0dB MAX @ 1-65MHz | |
| Return Loss | -20dB MIN @ 1-10MHz | |
| -16dB MIN @ 10-30MHz | ||
| -12dB MIN @ 30-60MHz | ||
| -10dB MIN @ 60-100MHz | ||
| Cross talk | -40dB MIN @ 1-30MHz | |
| -35dB MIN @ 30-60MHz | ||
| -30dB MIN @ 60-100MHz | ||
| Common Mode Rejection | -30dB MIN @ 1-50MHz | |
| -20dB MIN @ 50-150MHz | ||
| Hipot Test | 1500Vrms MIN |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| LPJ0215DNL | LPJ0231FBNL | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| T5011 | T5011NL | LINK-PP / Pulse | |
| T5012 | T5012NL | LINK-PP / Pulse | |
| T5013 | T5013NL | LINK-PP / Pulse | |
| T5015 | T5015NL | LINK-PP / Pulse | |
| B2086 | T3001NL | LINK-PP / Pulse | |
| B2113 | T3002NL | LINK-PP / Pulse | |
| B2114 | T3011NL | LINK-PP / Pulse | |
| B2116 | T3012NL | LINK-PP / Pulse | |
| B2117 | T3027NL | LINK-PP / Pulse | 询价 |
| B2118 | T3029NL | LINK-PP / Pulse | |
| B8098 | T3001NLT | LINK-PP / Pulse | |
| T3001 | T3002NLT | LINK-PP / Pulse | |
| T3002 | T3011NLT | LINK-PP / Pulse | |
| T3011 | T3012NLT | LINK-PP / Pulse | |
| T3012 | T3027NLT | LINK-PP / Pulse | 库存 |
| T3027 | T3029NLT | LINK-PP / Pulse | |
| T3029 | T5011NL | LINK-PP / Pulse | |
| H6503NL | T5012NL | LINK-PP / Pulse | |
| H6504NL | H6504NLT | LINK-PP / Pulse | |
| H6505NL | H6505NLT | LINK-PP / Pulse | |
| H6506NL | H6506NLT | LINK-PP / Pulse | |
| H6507NL | H6507NLT | LINK-PP / Pulse | |
