原产地: Guangdong China
品牌名称: LINK-PP
认证: ISO9001,UL,Reach,RoHS

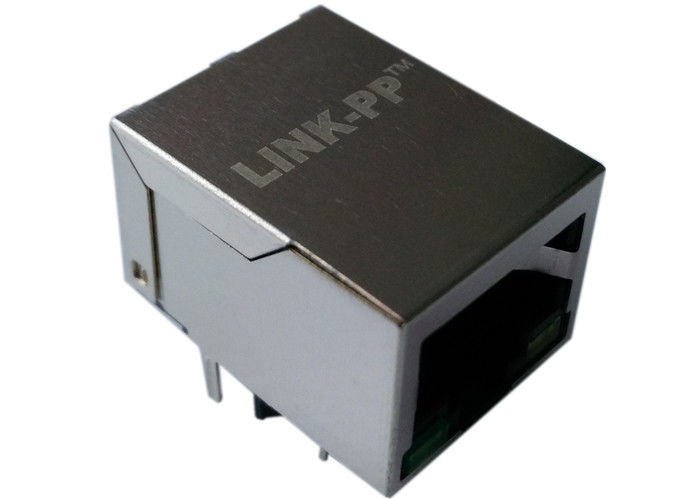

产品型号: LPJ0006BBNL
最小订货量: 200
价格: 工厂价
包装: 50个/盘,1200个/箱
交货周期: 现货
付款条款: 现金/月结15天/30天/60天
供货能力: 5.5KK/月
规格: |
LPJ0006BBNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
指示灯: |
黄-绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
规格: |
LPJ0006BBNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
指示灯: |
黄-绿灯 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
| Turn Ratio(±2%): | TX=1CT:1 RX=1CT:1 |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. / -40℃ TO 85℃. |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| LPJ0011BENL | LPJ0011FBNL | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| LPJ0011CNL | LPJ0011G4NL | LINK-PP / Pulse | |
| LPJ0011DNL | LPJ0011GBNL | LINK-PP / Pulse | |
| LPJ0011EBNL | LPJ0011GDNL | LINK-PP / Pulse | |
| LPJ0006NNL | H0068ANL | LINK-PP / Pulse | |
| H5007NLT | HX0068ANL | LINK-PP / Pulse | |
| H5008NLT | H5004NL | LINK-PP / Pulse | |
| HX5008NLT | HX5004NL | LINK-PP / Pulse | |
| H5009NLT | H5007NL | LINK-PP / Pulse | |
| H5012NLT | H5008NL | LINK-PP / Pulse | 询价 |
| H5014NLT | HX5008NL | LINK-PP / Pulse | |
| HX5014NLT | H5009NL | LINK-PP / Pulse | |
| H5015NLT | H5012NL | LINK-PP / Pulse | |
| H5020NLT | H5014NL | LINK-PP / Pulse | |
| HX5020NLT | HX5014NL | LINK-PP / Pulse | |
| H5089NLT | H5015NL | LINK-PP / Pulse | 库存 |
| H2055FNLT | H5020NL | LINK-PP / Pulse | |
| H2075FNLT | HX5020NL | LINK-PP / Pulse | |
| HX6062NLT | H5089NL | LINK-PP / Pulse | |
| J0G-0002NL | H2055FNL | LINK-PP / Pulse | |
| J0G-0003NL | H2075FNL | LINK-PP / Pulse | |
| J0G-0007NL | HX6062NL | LINK-PP / Pulse | |
| J0G-0009NL | JV006I21 | LINK-PP / Pulse | |
