Product Details
原产地: Guangdong China
品牌名称: LINK-PP
认证: ISO9001,UL,Reach,SGS,RoHS
产品型号: LPJ0006CNL
Payment & Shipping Terms
最小订货量: 100/500/1000
价格: 工厂价
包装: 50个/盘,1200个/箱
交货周期: 现货
付款条款: 现金/月结15天/30天/60天
供货能力: 5.5KK/月
规格: |
LPJ0006CNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
无 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |
规格: |
LPJ0006CNL |
封装: |
直插 |
速率: |
10/100 兆 自适应 |
LED指示灯: |
无 |
镀金: |
6u |
焊接: |
波峰焊 |
规格书: |
可提供 |
样品: |
可提供( 免费) |

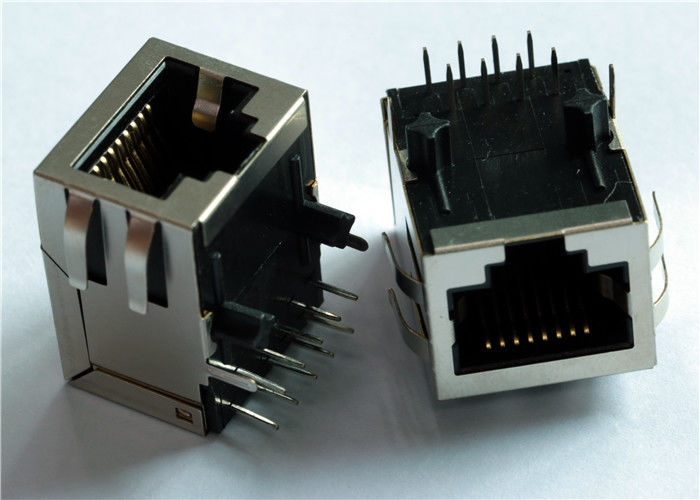

单口-快速以太网-Rj45 连接器.
| Turn Ratio(±2%): | TX=1CT:1 RX=1CT:1 |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. / -40℃ TO 85℃. |
| 型号 | 品牌-兼容 | 技术规格-下载 | |
| LPJ0108CNL | LPJ0112CNL | LINK-PP / Pulse | PDF / 3D / STP / IGS |
| LPJ0111BBNL | LPJ0113ABNL | LINK-PP / Pulse | |
| LPJ0112ADNL | LPJ0113BBNL | LINK-PP / Pulse | |
| LPJ0112GDNL | LPJ0113CNL | LINK-PP / Pulse | |
| LPJ0112GENL | LPJ0113DNL | LINK-PP / Pulse | |
| LPJ0104GENL | LPJ0114DNL | LINK-PP / Pulse | |
| LPJ0105HFNL | J0026D01B | LINK-PP / Pulse | |
| J0C-0005NLT | J1006F21PNL | LINK-PP / Pulse | |
| J0C-0006NLT | J8064D628A | LINK-PP / Pulse | |
| J3026G21DNLT | J8064D648A | LINK-PP / Pulse | 询价 |
| JV006I21NLT | J8064D668A | LINK-PP / Pulse | |
| JV011I21NLT | J8064D688A | LINK-PP / Pulse | |
| JV026I21NLT | J8064E62 | LINK-PP / Pulse | |
| J3026G01DNLT | J8064E64 | LINK-PP / Pulse | |
| J3011G21DNLT | J8064E66 | LINK-PP / Pulse | |
| JX30-0005NLT | J8064E68 | LINK-PP / Pulse | 库存 |
| J0N-0011NL | J8064D649P | LINK-PP / Pulse | |
| J0N-0012NL | J8064D649PNL | LINK-PP / Pulse | |
| J0N-0015NL | JC0-0019 | LINK-PP / Pulse | |
| J1006F21 | JC0-0019NL | LINK-PP / Pulse | |
| J0C-0003NLT | J0011D11 | LINK-PP / Pulse | |
| J0C-0004NLT | J0026D11 | LINK-PP / Pulse | |
| JXR1-0015NL | JKM-0011NL | LINK-PP / Pulse | |
